X-Series Configurator
1.Lens Type
Choose lens/light emission

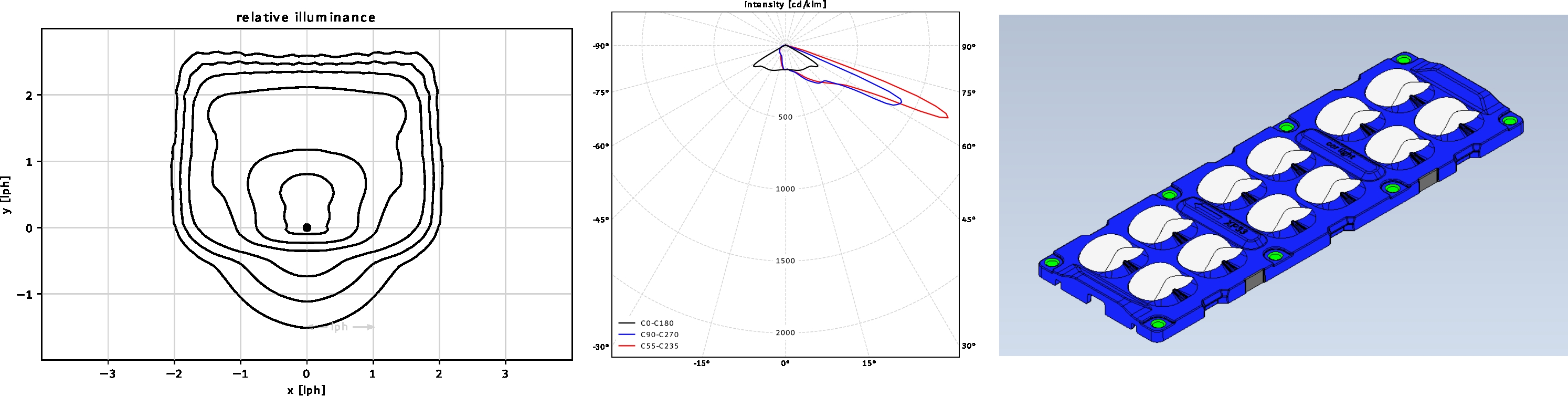

XP33
XS33
XS34
XS35
XP16
XS13
XP13
XS14
XS15
All options are available as standard products
2.Lens Finishing
Select the lens finish
Standard (No coating)
AR coating (anti reflection green vacuum)
AF coating (anti finger print / anti dust)
AR coating and AF coating options are available upon special request and require lead times different from the standard option.
3.Assembly
Choose whether to receive the X-series LED module assembled or as single components
Provide assembled components
Provide single components
Both options are considered available as standard products
4.X-Series KIT
Select the kit type
LENS + GASKET + SCREW + LED BOARD + METAL PLATE
LENS + GASKET + SCREW + LED BOARD
LENS + GASKET + SCREW
KIT 1 includes the lens, all gaskets and screws, the LED board and the metal plate.:
KIT 2 includes the lens, all gaskets and screws, and the LED board.:
KIT 3 includes the lens, all gaskets and screws.:
If KIT 3 is requested in assembled form (option 2), the small parts will still be supplied not mounted.
5.Drop voltage
Select the drop voltage
1x12led 36Vdc
Only Lens
1x4led 12Vdc
2x2led 6Vdc
Select the led board option available for the configuration for the Lens Type selected

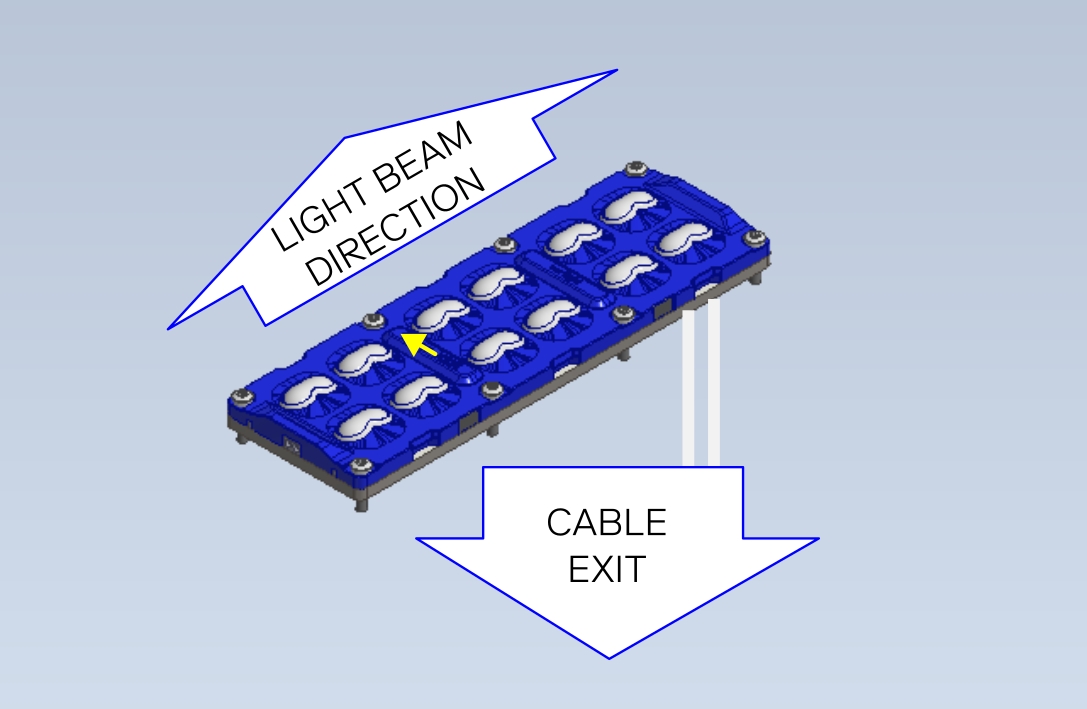

6.Cable Exit
Select the cable exit
Not mouted
Bottom Right
Bottom Left
Side Right
Side Left
Bottom Down
Side Down
It indicates the cable exit position on the module based on the lens orientation.:
This option is available only for assembled modules and for KIT 1 and 2.
7.Cable Type
Select the cable type
EU Double insulation
EU Single insulation
US Single insulation
This field can only be selected when the LED board is included (KIT 1 and 2):
Insulation is guaranteed up to 300 V.
8.Cable Lenght
Select the length of cable
100 mm
200 mm
300 mm (Standard)
400 mm
500 mm
600 mm
700 mm
800 mm
900 mm
1050 mm
Select the desired cable length at the LED module output.:
The standard version includes a 300 mm output cable; all other options are available upon special request and require lead times different from the standard option.
9.Connector
Select connector option
No Connector
Connector
Select the connector type. This option is available only upon specific request and requires lead times different from the standard option
10.CCT and CRI
Select the available CCT and CRI combination
1800K CRI 70
2200K CRI 70
2700K CRI 70
3000K CRI 70
4000K CRI 70
2700K CRI 80
3000K CRI 80
4000K CRI 80
The amber version is available only upon specific request and requires lead times different from the standard option
11.Bottom Carrier
Select the type of metal plate
No Carrier
Aluminum anodized Light Grey plate 3,5mm
Choose the type of anodized aluminum plate used for fixing the LED module.
This option is available only for KIT 1.
12.Gasket KIT
This parameter is always included and cannot be selected
No Gasket
Grommet and Gasket KIT
The gasket kit includes the lens gasket and the grommet for the metal plate
13.Screws Size and Type
This parameter is always included and cannot be selected
No Screw
Screws TORX T10 M3x12 316
The screws are always provided, and the quantity varies depending on the selected lens
